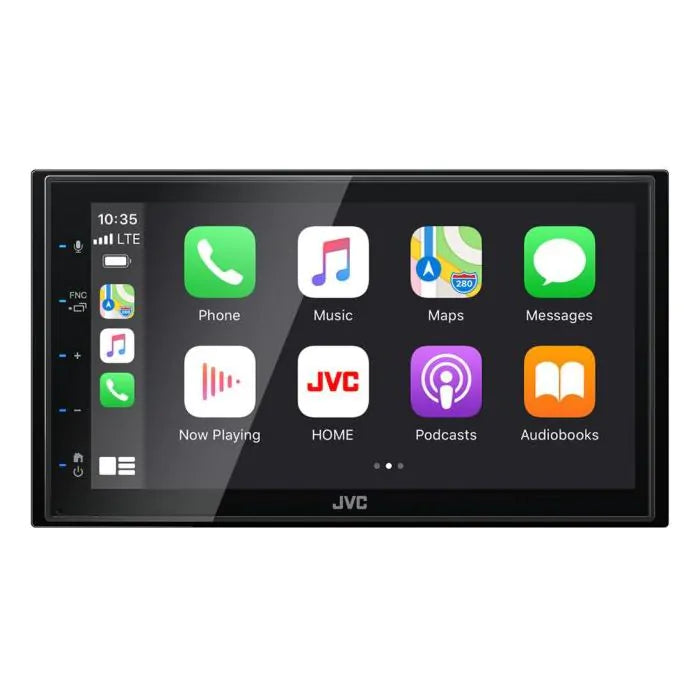

JVC KW-M180DBT - 6.8” Touchscreen Digital Media AV Receiver Built-In DAB Bluetooth Stereo

JVC KW-M180DBT - 6.8” Touchscreen Digital Media AV Receiver Built-In DAB Bluetooth Stereo

Regular price £189.99 GBP
Regular price £279.99 GBP Sale price £189.99 GBP
32% OFF
In stock
Tax included.
people are viewing this right now

Low stock: 1 left

View full details
product-img
JVC KW-M180DBT - 6.8” Touchscreen Digital Media AV Receiver Built-In DAB Bluetooth Stereo
Regular price £189.99 GBP
Regular price £279.99 GBP Sale price £189.99 GBP
Tax included.
  • 6.8" WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles.
  • DAB/DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
  • Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone).

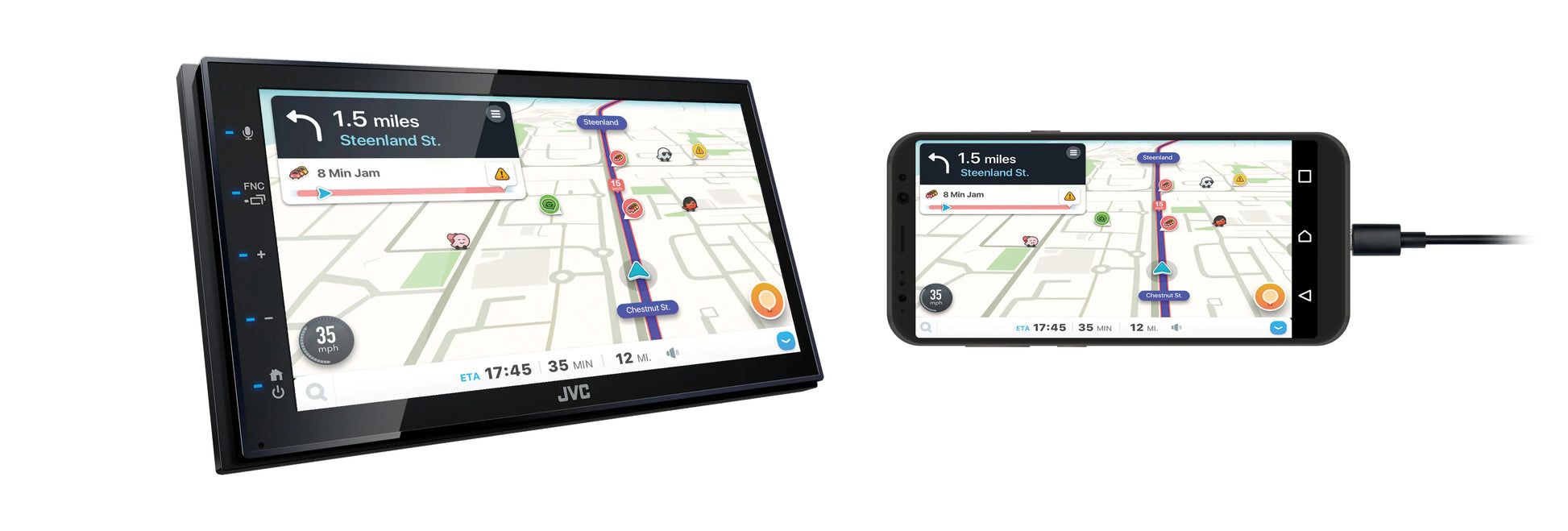

  • Supports Android USB Mirroring for seamlessly displaying and controlling your smartphone on the large screen.
  • Rear, High Speed USB type-A port. 1.5A Max Charge.
  • MP3-WMA-AAC-WAV-FLAC audio file & MPEG1/2-MPEG4-H.264-MKV video file playback.
  • Time Alignment & 13-Band EQ for optimal sound tuning enhancements
  • 2 Preouts(front/rear) + sub(mono) to connect external amplifiers and improve your sound system.
  • AV-in, Video-out and dedicated rear view camera input with parking guide lines

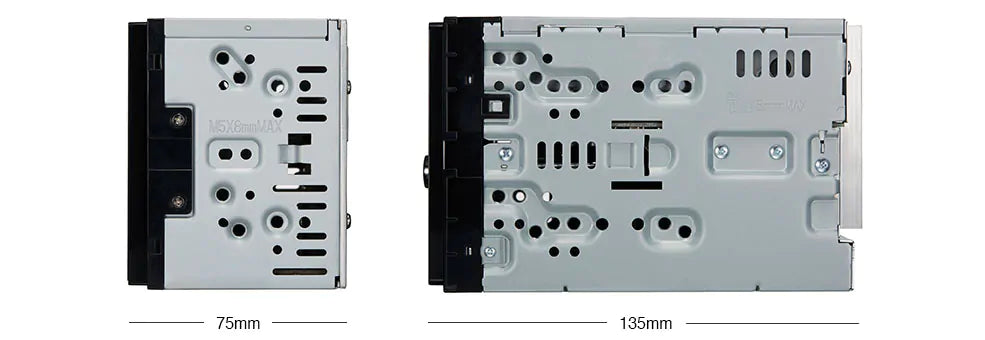

  • Short body (75mm) for easy installation in a wider range of cars.

FEATURES-

Monitor

  • Screen Size 6.8 inches (diagonal) wide
  • Touch Control
  • Panel Type Capacitive with Printing
  • Display System TN LCD panel
  • Drive System TFT active matrix system
  • Number of Pixels 1,152,000 (800 x 480 x RGB)
  • Effective Pixels 99.99 %
  • Pixel Arrangement RGB striped arrangment
  • Back Lighting LED
  • Key Illumination Colour Blue
  • Dimmer "High" (Default) / "Mid" / "Low"
  • Multilanguage Display

Radio Tuner

  • DAB+ Tuner
  • DAB+ Frequency Band III 174928MHz to 239200MHz
  • DAB-DAB / DAB-FM Auto Switch
  • FM Tuner
  • Radio Data System (RDS)
  • FM Frequency Range 87.5-108.0MHz
  • AM Tuner
  • AM Frequency Range 531kHz ~ 1611kHz (9kHz Frequency Step)
  • Preset Stations 30 (6ch x 5band)
  • Automatic Preset / SSM

Media Playback

  • Audio Decoder
  • MP3 Compatible with Tag USB
  • WMA Compatible with Tag USB
  • WAV Compatible with Tag USB
  • AAC Compatible with Tag USB
  • FLAC Compatible with Tag USB
  • Video Decoder
  • MPEG-1 / MPEG-2 Compatible USB
  • MPEG-4 Compatible USB
  • H.264 Compatible USB
  • MKV Compatible USB
  • AVI/MKV Compatible USB

USB

  • USB Port(s) x 1
  • Location Rear
  • USB Standard 2.0 Full Speed (High Speed)
  • File System FAT16 / FAT32 / exFAT / NTFS
  • USB Mass Storage Class
  • Tag Information Display
  • Album Art Display
  • List Access
  • Random / Repeat Play
  • Skip
  • Time Code Display
  • Last Position Memory / Resume
  • Digital / Analog Converter (DAC) 24 bit
  • Frequency Response 20 Hz ~ 20kHz
  • 1.5A Max. Power Supply Current

Bluetooth®

  • Bluetooth Technology V 5.0
  • Built-In Bluetooth [1]
  • Bluetooth® Version 5.0
  • Voice Dialing [2] * Voice recognition compatible mobile phone required
  • Supported profiles
  • Multi profile
  • Hands Free Call (HFP)
  • (HFP1.6 Wideband Speech)
  • Advanced Audio Distribution Profile (A2DP) V1.2
  • Audio/Video Remote Control Profile (AVRCP) V 1.5
  • Phone Book Access Profile (PBAP)
  • Audio Codec AAC / SBC
  • Noise Canceller (Auto)
  • Echo Canceller (Auto)
  • Wired Microphone included

Android Control

  • USB mirroring for Android  (via USB)
  • Android Music Playback [3] (via Bluetooth(R))

iPod/iPhone Control

  • iPod/iPhone Music Playback (via USB or Bluetooth(R))
  • iPod/iPhone Mode (2-Way Control Mode) (USB)
  • Random/Repeat Play
  • Battery Charge (USB: 1.5A High Current Charging)
  • App(s) Mirroring OB for JVC

Audio

  • Maximum Power Output (Front & Rear) 45Wx4
  • Full Bandwidth Power (at less than 1%THD) 16W x 4
  • Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
  • Output Frequency Band 20 - 20,000Hz
  • EQUALIZER 13-Band Graphic EQ
  • Preset EQ
  • Preset x 7 + User set x 3 / All SRC
  • High-Pass Filter/Low-Pass Filter
  • Digital Sound Processor (DSP)
  • Time Alignment
  • Loudness Control
  • Bass Boost (Hyper Bass System)

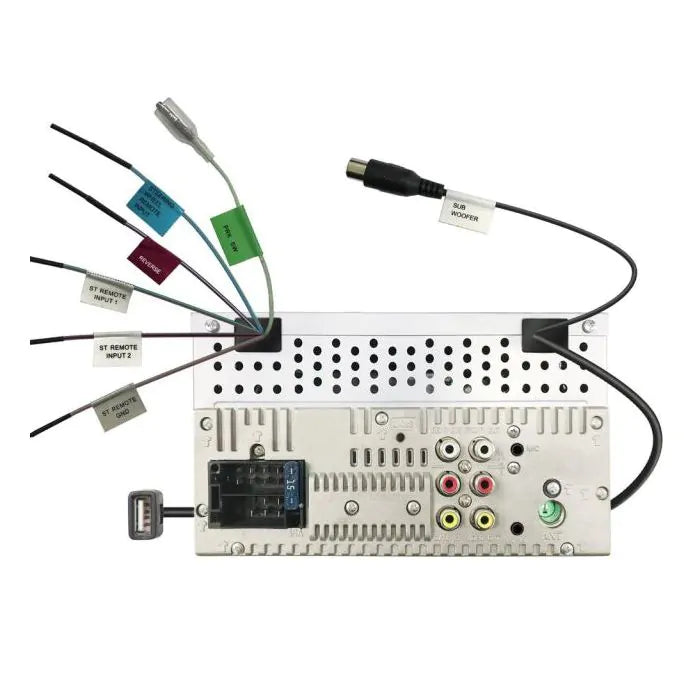

Inputs and Outputs

  • Audio Inputs and Outputs
  • Pre-Out Terminals
  • Front (L+R), Rear (L+R), Subwoofer (mono)
  • Pre-Output Level 2V / 10kΩ
  • Pre-Out Impedance 1,4 kΩ
  • Pre-Out Level/Impedance 2.0V / 10kΩ
  • Subwoofer Output with Level/Frequency Control
  • Video Inputs and Outputs
  • Video Input Level/Impedance 1.0Vp-p/75Ω
  • AV Input RCA x 1
  • Video Out RCA
  • Colour System NTSC/PAL Video Output Level/Impedance 1.0Vp-p / 75 ohms
  • Camera inputs Rear view camera Input

General

  • DAB Antenna Input
  • Wireless Remote Control Ready (RM-RK258 required)
  • Wired Steering Remote Control Ready
  • Learning Direct OEM Remote
  • ISO Connector Cable
  • Short Chassis
  • Operation Voltage 12 VDC
  • Dimensions (W x H x D) 178 x 100 x 75 mm
  • Installation Size (W x H x D) 182 x 112 x 75 mm
  • Weight 1.3kg ( Including Sleeve and Trim plate)
