Key Features
- 10.1" HD (1280 x 720px) LCD display for sharp, high-contrast images, vivid colors and superior wide viewing angle
- Floating Panel Mechanism with 3-way Position Adjustment.
- Wi-Fi built-in for convenient wireless connection with a compatible smartphone.
- Supports CarPlay & Android Auto wirelessly or connected via USB.
- Supports Wireless Mirroring for Android including 2-way touch control capability.

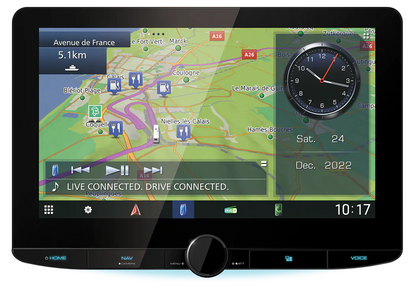

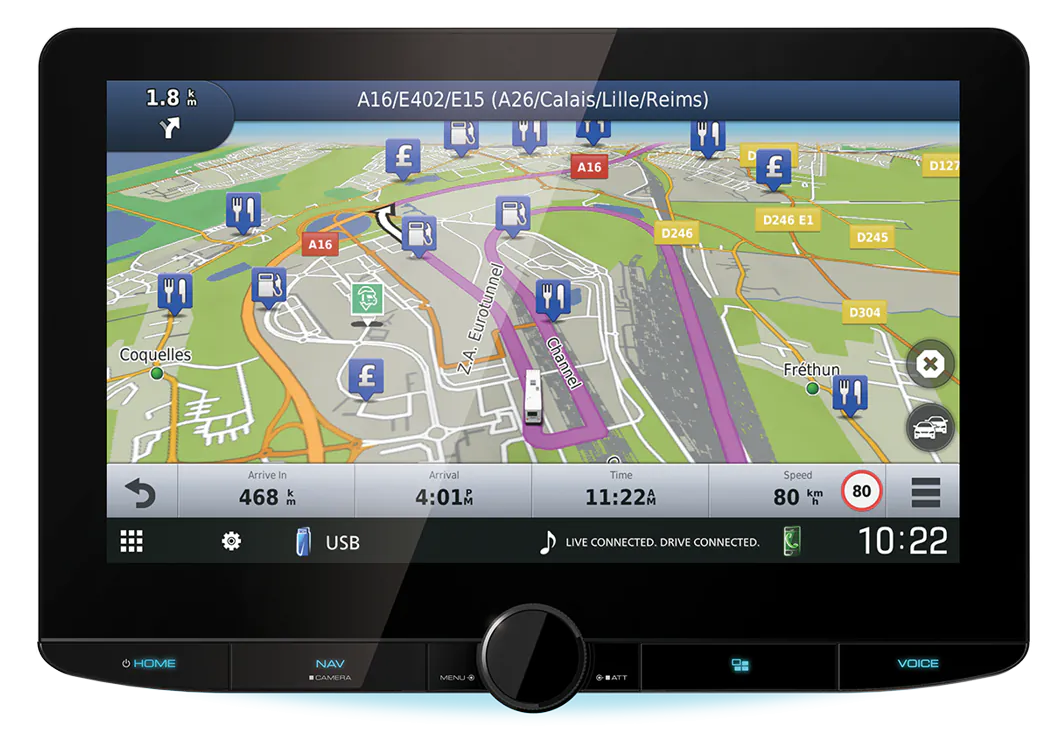

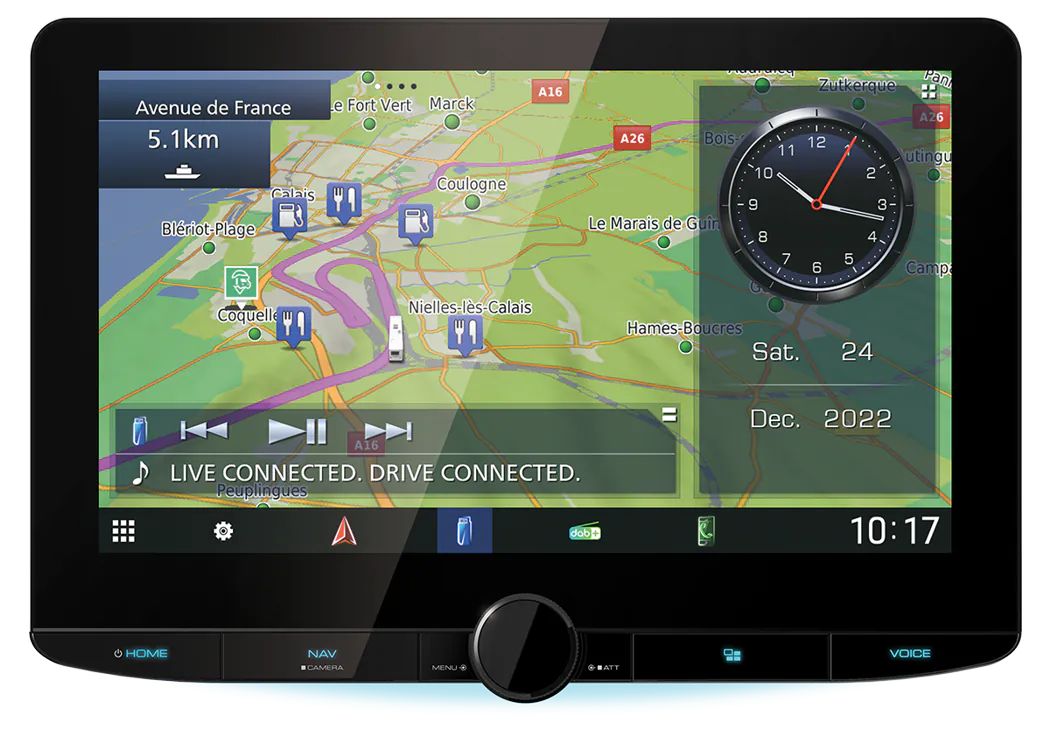

- Equipped with the industry leading Garmin navigation system offering a variety of display options to make your driving easier
- Routes suggested according to the RV, Truck or Car Profile. Camper contact by NKC, ACSI & HERE campsites.
- 3 Years Garmin map care.
- DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound
- Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone).
- Compatible with Hi-Res Audio which provides greater sound clarity and detail than standard compressed digital audio formats.
- Up to 4 Camera Inputs which allow for the utmost in convenience, flexibility and safety
- Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
- Steering wheel remote control adapter & OEM Display interface ready (Optional car specific interface required).
General Features
- DIN Size 2 DIN
- Security Code Function ( user set)
- Selectable GUI Background Wallpaper
- Key Illumination Variable color
- Rotary Encoder & Control Knob
- Touch sensor
- Installer Memory
- Back-up Memory
- Attenuator with Smooth Volume Return
- Optional IR remote controller, KCA-RCDV340
- Digital Clock (24H)
Multimedia GUI Features
- Software updates (SoC) via USB
- Graphics Type Graphics
- Top Menu Customize
- Multi Widgets
- Multi (up to 4), Clock, Weather & Photo Frame Widget
- Animation
- Multi touch function, (Garmin navigation)
- R-CAM interrupt
- R-CAM Caution On Screen Display
- R-CAM Parking Guide Lines, customizable
- Front Camera Interruption
- Front view camera mirror
- DashCam Control
- Menu text in selectable language
- 22 languages: English(UK)(Default), English(US), Spanish, French, German, Italian, Dutch, Russian, Portuguese, Chinese (Simplified), Chinese (Traditional), Thai, Turkish, Arabic, Persian, Hebrew, Greek, Malaysian, Indonesian, Polish, Czech, Hungarian.
Monitor Features
- In-Dash/On-Dash In-Dash
- LCD type 10.1 inch Wide HD screen (1280 x 720p)
- LCD backlight LED
- Display Mode
- 3 Mode (Full(default)/Auto/Normal)
- Screen Adjustments Noon/Night Mem/Brightness/Tint/Colour/Contrast
- Dimmer function
- Manual/Sync/Navi Sync
- Dimmer Level Sync / On / Off
- Visual Source Mode Mirorring/CarPlay/Android Auto.
- Touch Panel
- Capacitive
- Display film Anti-Fingerprint / Anti-Reflection / Anti-Glare)
- High Definition Display
- Mechanism type Floating screen
- Tilt mechanism control -10° ~ +45°
- Forward/backward mechanism control 0 ~ 22mm (fixed by screws)
- Up/Down mechanism control 0 ~ 39mm (fixed by screws)
- NTSC/PAL judge (Auto)
- Display Off Mode
Audio features
- Max. Output Power 4 x 50W
- Pre-out 3RCA: Front/Rear/Subwoofer
- Pre-out Output Level 5V
- Volume Offset
- 2 Zone Control
- Att.(-20dB) with smooth Volume Return
Multimedia DSP Features
- DSP Chip AK7738
- Position Control
- Position Preset 4 Presets
- Position Cabin Size
- Parametric Equalizer
- Parametric Equalizer Bands 13
- Preseted Parametric Equalizer Settings
- Manual Parametric Equalizer Settings
- High Pass Filter (HPF)
- Low Pass Filter (LPF (Non-Fading)
- 3-Way X'Over
- Source DSP Memory
- Channel Level Control
- Space Enhancer
- Supreme
- Realizer
- Loudness
- Stage EQ
- Bass Boost
- Drive EQ+
- Speaker Size & Location Control
- Listening postion control / Time Alignment
Video Features
- Audio Video Output, Video: RCA, Audio: mini-jack
- Audio/Video Input, AV-input or Camera input (Selectable)
- HDMI input
- Video-In for Rear-view Camera 1
- Detection Mode Rear View Camera Reverse sensor wire
- Parking Guide Line
Tuner Features
- FM Reception
- AM (MW/LW) Reception
- Tuner Presets (FM/AM) 20 Presets (15FM / 5AM)
- Tuning mode Auto1/Auto2/Manual
- Up/Down Seek/Scan
- Automatic Memory Entry (AME)
- FM Stereo / Mono Selector
- Radio Data System
- Radio Text Plus
- Traffic Information
- Local search
- Auto TP search
- Enhanced Other Networks Function (EON)
- Program Type Function (PTY)
CE DAB tuner features
- Digital Radio Certification Mark
- DAB/DAB+ BandBand III
- DAB/DAB+ Mode I, II, III, IV
- Intelligent seek
- Tuning mode / Seek mode Auto1/Auto2/Manual
- Service preset 15 ch * 1 bank presets,
- Service list by alphabet order
- Preset list
- Alphabet Search
- Traffic Information
- DAB-DAB/DAB-FM auto switch
- Seamless DAB-FM blending
- DLS (Dynamic Label)
- PTY (Programme Type) search
- PTY (Programme Type) watch
- Announcement Switching (ASW) Select
- DMB Audio (Digital multimedia broadcasting)
- Soft linking
- Antenna power supply on/off switch Yes
Playable Audio File
- AAC (*.m4a) files are playable USB/SD
- AAC (*.aac) files are playable USB/SD
- MP3 files are playable USB/SD
- WMA (.wma) files are playable USB/SD
- WAV (.wav) files are playable USB/SD
- FLAC files are playable USB/SD
- Ogg Vorbis (.ogg) files are playable USB/SD
- DSD high resolution audio format USB/SD
CE_Playable Video file
- MPEG1/2 files are playable USB/SD
- MPEG4 files are playable USB/SD
- WMV files are playable USB/SD
- H.264 files are playable USB/SD
- mkv files are playable USB/SD
- JPEG files are playable USB/SD
- BMP files are playable USB/SD
- PNG files are playable USB/SD
USB Features
- Rear USB Terminal, Pigtail (20cm)
- USB Type 2.0 High speed
- USB extension cable supplied yes, 1m
- Drive Change
- Tag Information Display
- Album Art Display
- Repeat / Random Play
- Category search
- Link Search
- Resume play
- Time code display
iPod Features
- Connection via: USB / BT / Wifi
- Made for iPhone
- Album art support
- Alphabet search
- Skip search
- iPod Accessory Protocol (iAP) iAP2
- Works with Apple CarPlay Wireless or Wired via USB
- Android Phone Control
- Connection Port USB/Wifi/Bluetooth
- Works with Android Auto
- Android Open Accessory Protocol
SD-card Features
- SD card type: SD / SDHC / SDXC
- Max capacity2000 Gb
- Repeat play Folder/File/All
- Random play Folder
- Time code display
- Resume play
Bluetooth General Features
- Hands Free Profile (HPF) V1.7
- 2 phones full time connection
- Audio Streaming (A2DP), (SBC/AAC)
- Serial Port Profile (SPP)
- Simple Secure Pairing (SSP)
- Phonebook Access Profile (PBAP)
- Audio/Video Remote Control Profile (AVRCP), V1.6
- Multi Profile Support
- iPhone & Android automatic pairing via USB
- KENWOOD Remote App Ready available in App Store & Play store
- KENWOOD Portal App Ready
- KENWOOD Music Mix Support
- Private mode
- Interrupt call request
- Alphabet Search (Phonebook)
- Voice Control
- Noise Canceller
- Echo Canceller
- Network & Wifi features
- WiFi built-in
- Frequency Range Dual Band (2.4GHz / 5GHz)
- IEEE standard 802.11a/b/g/n/ac
Navigation Features
- Guidance by Garmin
- Touch-screen controllable
- IR Remote controllable
- Graphical Resolution HD
- Built-in Map Data OEM CN Europe NTU 2022 ALL North
- Built-in Map DataOEM CN Europe NTU 2022 ALL South
- Map Update Via download on SD card
- Map care 3 Years (Starts after 20km first time driving)
- Default Position Depend on locale setting
- 3-Dimensional Map Display
- 2-Dimensional Map Display
- Primary/Secundary GUI
- Auto Zoom Function
- Voice Language selectable
- Text Language Selecetable
- Keyboard Language Selectable
- Keyboard Layout QWERTY or ABCDE
- Text-to-Speech (TTS) Voice Guidance
- Voice Guidance
- Destination Search Keyboard
- POI's (Car/Truck/RV/user)
- Map
- Coordinates
- Multi Destination Search, Faster Time / Shorter Distance / Less Fuel
- Automatic Re-Route
- Way Points (Favorites)
- Traffic Message Channel Built-in
- Easy-to-use Graphical Interface
- ecoRoute™
- Turn-by-turn' directions
- Lane assist with photo real junction view
- Half junction view
- PhotoReal junction view
- 3D Traffic
- 3D Terrain
- 3D Landmarks & buildings
- Globe view (world mapping)
- Support Unicode (World Wide)
- Multi-route choice
- Localized road signs and auto text
- Localized map configuration and display
- My Trends
- Speed Limit Indicator
- Faster Routing & Map Display
- Map Buttons and Map Tools
- Door to Door Navigation (point addressing
- Points of intrest (POI), more than 6 million points
- Custom POI's
- Smart POI Search
- POI Call Button
- Custom "Where To" Menu
- Search Bar with Predictions
- Brows POI's on Map
- Birds Eye lane guidance
- Turn-by-Turn Instructions
- Day/Night Colour mode, Manual/Automatic
- Detour Re-Routing
- Route Preference Function
- GPS Info page
- Customizable vehicle profile information
- Phone call by POI search (Bluetooth Function)
- Phone number search
- Dash-Cam Playback Link
CE_Truck_Navigation_Feat.
- Truck/camper navigation
- Truck Profile
- Truck Specific Routing
- Truck POI's
- Enable/Disable Restrictions
- Customizable Cautionary Messages
- Suspend Resume UI
- Highlight Weight Stations While Routing
- Environmental Zones
- Recreational vehicle (RV) Profile
- ACSI campsites POI
- NKC campsites POI
- HERE campsites POI
- Sunset / Sunset info
- POI disclaimer Yes
- Visual/Audio Warning on Speed Limit Change

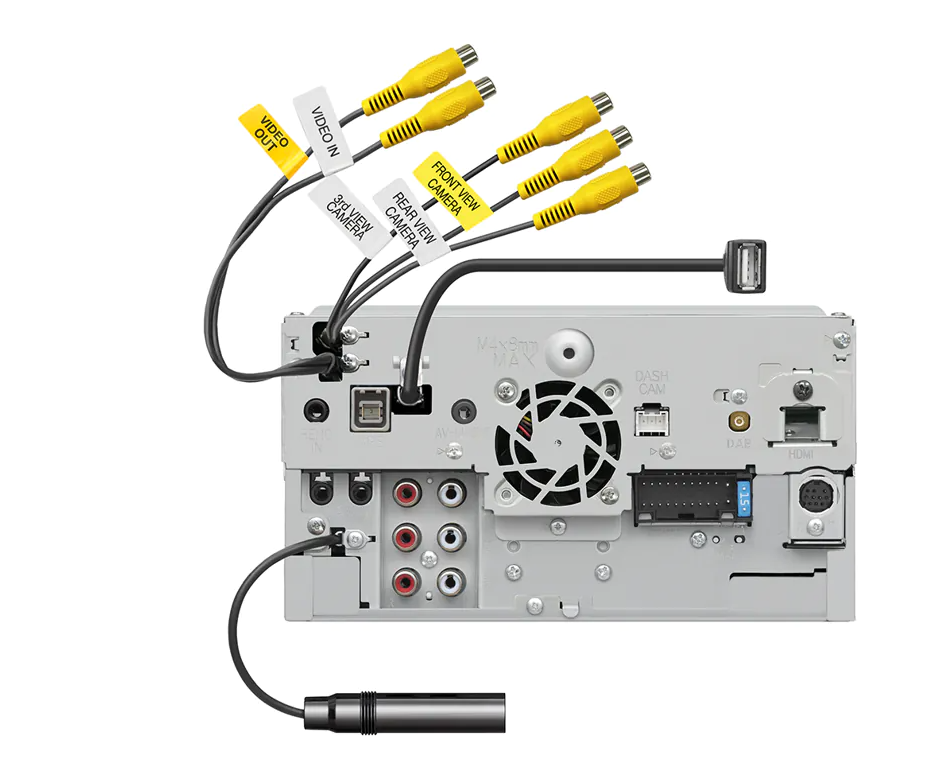

Connectivity
- USB interface 1 x Rear side
- SD card slot
- OEM Wired Remote Control ready, Optional interface needed
- OEM Display Control ready
- Programmable OEM Steeringwheel Remote Function
- DC-Cord 22pin to ISO
- Parking sensor (handbrake) wire
- Power Control (P.CON) wire
- Speedpuls input wire
- Video Out RCA x1
- Reverse sensor wire
- Rear View Camera Input
- Dedicated RCA Video-in
- Front View Camera Input selectable: Front / Dash-Camera-in
- 3rd View Camera input
- HD camera input Front & Rear camera input
- Multi View Camera Control Line Yes
- Dashcam Link
- HDMI input Type A
- GPS Aerial Input HRS GT5-1S connector
- FM Antenna Input JASO connector
- DAB Aerial input SMB connector
- External microphone input 3,5mm mini-jack
Audio Specifications
- Maximum Power 50W x 4
- Output Power (DIN45324,+B=14.4v) 22W x 4
- Output frequency band 20Hz ~ 88kHz
- Preout Level 5000mV / 10kOhm,
- Preout Impedance ≤ 300Ohm
- Speaker Impedance 4Ohm ~ 8Ohm
Network & WiFi Specifications
- Wifi IEEE standard 802.11a/b/g/n/ac
- Wifi Frequency Range 2.4 - 5 GHz
Navigation specifications
- Receiver type High sensitivity GNNS receiver
- Acquisition time cold < 26 sec
- Update rate 1/sec continuous
- Position accuracy < 2 meters/typical
- Velocity accuracy 0.05 meter/sec RMS
- Positioning method GPS / GLONASS
- Antenna External GNNS antenna
Accessories
- DC cord (Molex to ISO) 25 cm
- usb extension cable 1 piece, 1 meter
- Screws (Parker-type) Ø 3 x 6mm, 2 pieces
- Screws (M-type) M5 x 8mm, 6 pieces
- GPS Antenna Ground Plane Mount (Adhesive Metal Pad)
- Handsfree Microphone with 3 m cable
- Bracket A 2 pieces
- Bracket B 2 pieces
- Bracket C 1 pieces
General Specifications
- Operation voltage 12V DC car battery
- Dimensions (WxHxD) 1748 x 100 x 155mm
- Weight 3250 gr.
- Instruction Manuals Multi-language quick Guide
Shipping Policy
Our Shipping Policy was last updated on 1st January 2025
Interpretation and Definitions
Interpretation
The words of which the initial letter is capitalized have meanings defined under the following conditions. The following definitions shall have the same meaning regardless of whether they appear in singular or in plural.
Definitions
For the purposes of this Disclaimer:
● "Company" (referred to as either "the Company", "We", "Us" or "Our" in this Disclaimer) refers to FAW Motorsport
● "Goods" refers to the items offered for sale on the Service.
● "Orders" means a request by You to purchase Goods from Us.
● "Service" refers to the Website.
● "Website" refers to FAW Motorsport, accessible from WWW.FAWMOTORSPORT.CO.UK
● "You" means the individual accessing the Service, or the company, or other legal entity on behalf of which such individual is accessing or using the Service, as applicable.
Thank you for visiting and shopping at FAW Motorsport. The following terms and conditions constitute our Shipping Policy.
Domestic Shipping Policy
SHIPMENT PROCESSING TIMES
All Orders are processed within 2-3 business days. Orders are not shipped or delivered on weekends or holidays. Special order products will be processed within 2-3 days delivery times will vary and collection may be required for larger items. Collection dates will be confirmed via email or telephone.
If We are experiencing a high volume of orders, shipments may be delayed by a few days. Please allow additional days in transit for delivery. If there will be a significant delay in shipment of Your Order, We will contact You via email or telephone.
SHIPPING RATES UK MAINLAND:
Standard: 3-4 business days £6.99
Express Delivery: 1-3 business days £8.99
Large item: 2-5 business days £15.43
Delivery delays can occasionally occur.
Please contact us for shipment outside of Mainland UK
SPECIAL ORDERS POLICY:
1. No Returns:
o Special orders are custom-made or customized to meet your specific requirements and, therefore, cannot be returned under any circumstances.
2. No Cancellations:
o Once a special order is placed, it enters our production process immediately. As a result, cancellations are not permitted. Please review your order carefully before finalizing the purchase.
3. Non-Refundable:
o Payments for special orders are non-refundable. This includes deposits and any other payments made towards the special order.
4. Customer Responsibility:
o It is the customer's responsibility to ensure all specifications and details are correct at the time of placing the order. Any errors or omissions in the order details cannot be amended once the order has been processed.
5. Acceptance of Terms:
o By placing a special order, you acknowledge and agree to the terms outlined in this policy. This ensures that you are fully aware of the non-returnable and non-cancellable nature of special orders.
Shipment confirmation & Order tracking
You will receive a Shipment Confirmation Email once Your Order has shipped containing your tracking number(s). The tracking number will be active within 24 hours.
Customs, Duties and Taxes
FAW Motorsport is not responsible for any customs and taxes applied to Your Order. All fees imposed during or after shipping are the responsibility of the customer (tariffs, taxes)
Damages
FAW Motorsport is not liable for any products damaged or lost during shipping. If You received Your Order damaged, please contact the shipment carrier to file a claim.
Please save all packaging materials and damaged goods before filing a claim.
Contact Us
If you have any questions about this Shipping Policy, You can contact Us:
● By sending us an email: info@FAWMotorsport.co.uk
