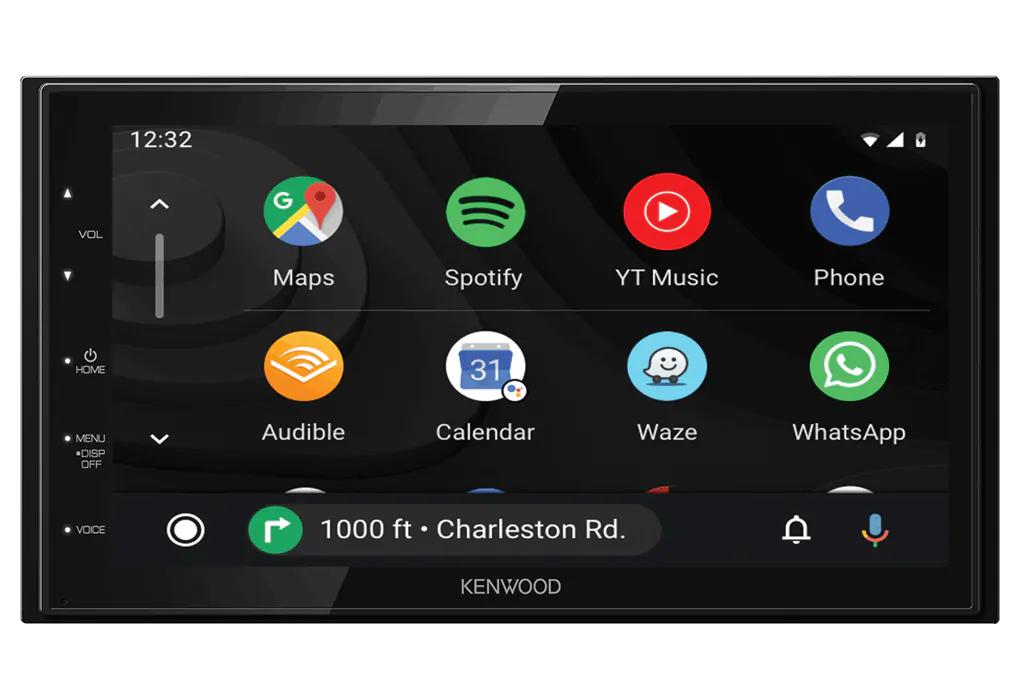

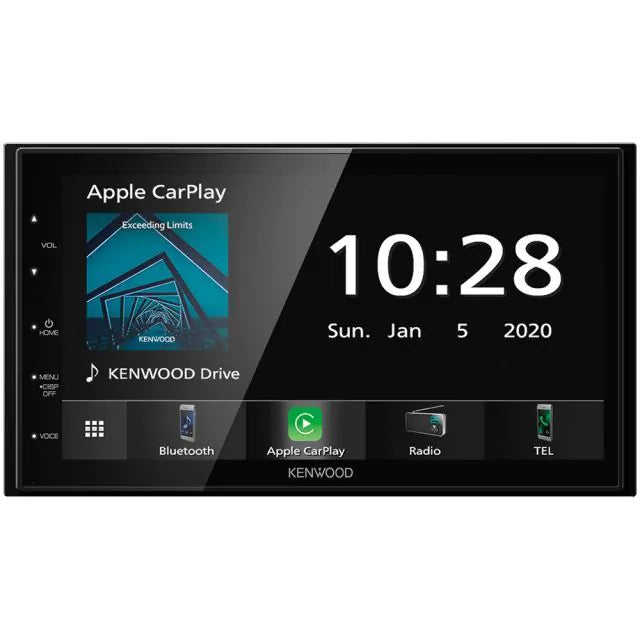

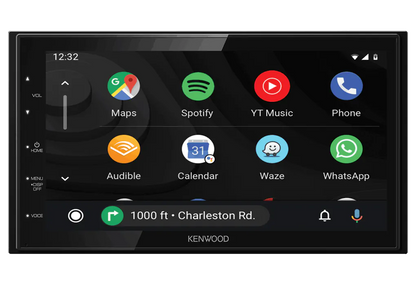

Key Features
- 6.8 inch WSVGA Capacitive Touch Screen
- White Key Illumination
- Enhanced GUI & Graphics
- Enhanced Smartphone Connections:
- Wired Apple CarPlay
- Wired Android Auto
- Wired iPhone & Android Auto USB Mirroring
- Built-in Bluetooth technology
- DAB+ Digital Radio Tuner / FM (RDS) / AM tuner
- High Speed USB Input - 2.1A
- Full HD Video File Format Playback
- Rear Camera Input
- AV Input
- Video Output
- 13-Band Graphic Equaliser
- Digital Time Alignment
- Front, Rear Subwoofer Pre-outs - 2.5V
- Steering Wheel Remote Interface ready
- Wireless Remote ready
- Single DIN Short Chassis Design
Monitor Features:
- 6.80” WVGA (1024 x 600px) with Clear Capacitive Touch Screen
- Protective Film with Anti-Fingerprint
- White key illumination
- Fixed Panel
- 3 Display Mode: Full(Initial) / Auto(Full/Normal) / Normal
- Screen adjustments: Brightness, tint, colour, contrast and Backlight
- Dimmer sensor: Manual / Sync & Dimmer level control (Auto/On/Off)
- NTSC / PAL judge (Auto)
- Display OFF mode
Graphical User Interface (GUI):
- Demonstration Mode (default ON)
- Home screen, 4 Top SRC keys are customisable
- Wallpaper customizable (6 presets + 2 user set)
- Text scroll
- Rear view camera interrupt with parking guide lines & caution on screen
- Visual source mode: Mirroring / CarPlay / Android Auto
- Selection of 14 languages for menu & text:
- English UK(default) English US, Spanish, French, German, Italian, Dutch, Russian,
- Portuguese, Hebrew, Greek, Polish, Czech and Hungarian
Tuner Features:
- FM / AM(LW/MW) radio / 24 x FM and 12x AM Presets
- RDS / EON / Radio text plus / PTY / Local seek / Traffic information.
- Manual/Auto memory entry.
- Auto1/Auto2/Manual tuning mode/seek mode / Seek/scan up/down.
▼DAB+ tuner Features:
- DAB+ (Band III) tuner / 15 presets
- DAB-DAB / DAB-FM Auto Switch / Seamless DAB-FM blending
- Traffic information / PTY search / PTY watch / ASW select
- Alphabet / Intelligent search / DLS (Dynamic label) / Slide Show / Softlink
- Audio Format: MPEG1 Audio Layer II, MPEG4 HE-AAC-v2
Bluetooth features:
- High quality wide-band Hands-free speech (HFP V1.7)
- High quality microphone built-in
- Private mode
- Interrupt call request
- Audio streaming (A2DP V1.2) with AAC / SBC codec support
- Music library browsing (AVRCP V1.6)
- Album artwork display
- Accessible phonebook entries (PBAP) with alphabet search (English / Hebrew)
- Secure Simple Pairing (SSP)
- Auto pairing via USB (iPhone & Android)
- Optimised Noise & Echo canceller
USB Input Features:
- High speed type-A USB port / FAT16/32 NTFS/exFAT
- Max. 2.1A quick charge for selected phones (BC 1.2 compatible)
- Mass storage class
- Tag information display / Album art display / Time code display
- List access / Category search and Link search
- Folder or All random play / Folder, File or Repeat All play / Skip
- Drive change / Last position/resume play
Supported CODEC’s (USB):
- Audio: MP3 / WMA / AAC / WAV / FLAC
- Video: MPEG1 / MPEG2 / MPEG4 / H.264 / WMV / MKV
- Pictures (for user Wallpaper): JPEG / PNG / BMP
Android Features:
- Works with Android Auto™ via USB
- USB mirroring for Android with 'MirrorApp+' smartphone app
- Music playback via Bluetooth
Apple CarPlay/iPhone Features:
- Made for iPhone.
- Works with Apple CarPlay™ (via USB)
- USB mirroring for iPhone with 'MirrorApp+' smartphone app
Audio Features:
- 50W x 4 Max power output / 22W x 4 RMS
- 2 RCA pre-outs (Front & rear) + Subwoofer (mono) with 2,5V Preout level
- Reverse with Attenuator (-20dB) / Mute
- Beep On / Off (default)
- Balance & Fader control
- Volume offset for each source
- Built-in amplifier Off
Digital Sound Processor (DSP):
- Digital Time alignment (DTA): Position control + 4 presets, Position Room Size
- 13-Band graphic equaliser: 7 presets, 3 user set for each source
- High-pass filter / Low-pass filter.
- Subwoofer Phase Control (Normal/Reverse) / X’over
- Speaker size control: Front/Rear/Subwoofer
- Channel level control / Bass Boost & Loudness control / Tweeter Volume
Video Features:
- AV-out: Available Source: USB
- Rear Camera Input (NTSC/PAL auto Switching)
Connectivity:
- Third-party Wired Steering Remote Interface ready. (Optional interface required)
- Learning Steering Remote (RESISTIVE protocols only!)
- Rear view camera input (RCA)
- Video-out (RCA)
- Rear USB2.0 (pigtail 1m cable)
- 2 RCA pre-outs (Front & rear) + Subwoofer (mono)
- FM/AM antenna input ( JASO)
- DAB antenna input (SMB)
- 22 Pin Molex Connector:
- Power Antenna Control • Power Control (P-Cont) • Illumination/Dimmer Wire
- Wired Remote Wire • Reverse sensor wire • Parking brake sensor wire
General Features
- Optional IR remote controller: KNA-RCDV331
- Firmware/software update via USB
- Backup memory
- Installation Dimensions (W×H×D): 182×112×86mm (with Sleeve)
- Operating Voltage: 14.4V (10.5 – 16 V allowable)
- Maximum Current Consumption: 15 A
- Weight: 1,3kg
Accessories:
- 22Pin Molex Connector to ISO Connector lead
- GPS/Glonass antenna with mounting plate (3,5m cable)
- Extension Parking Cable (2m)
- 2DIN Sleeve & Lever
- 1DIN adapter bracket set (pre-mounted)
- Remover for Escutcheon (trim
